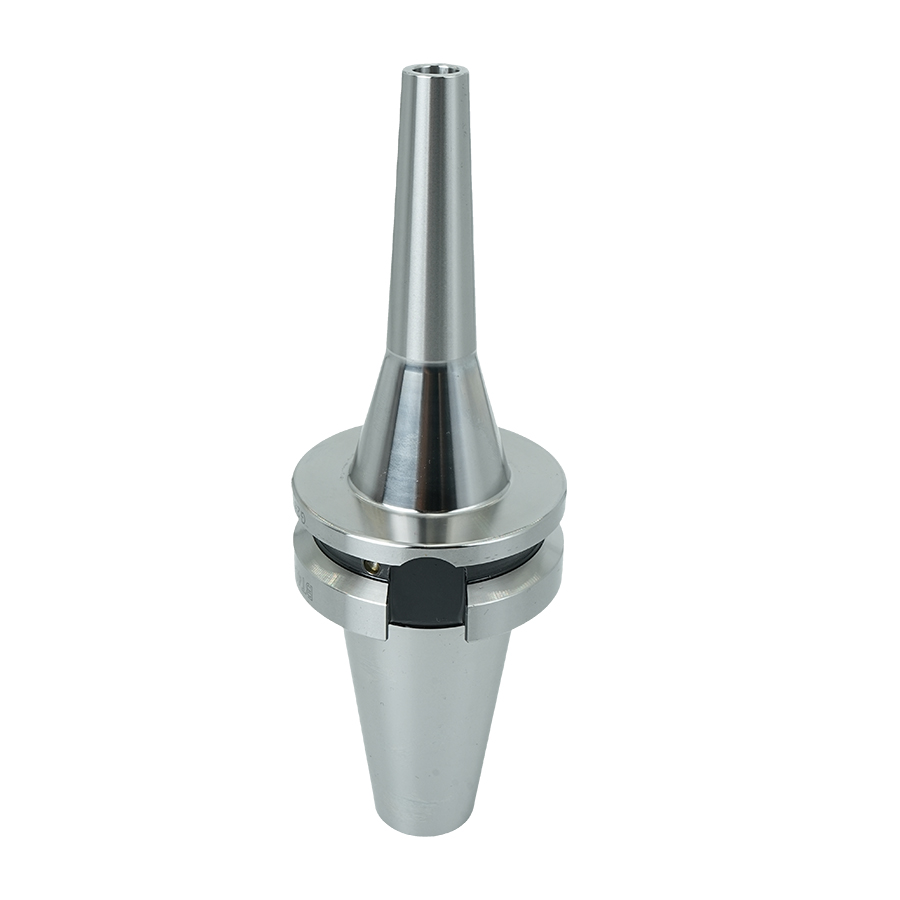

A collet chuck is a precision workholding device used to securely hold and accurately position a workpiece during machining. It is widely used on CNC lathes, turning centers, milling machines, and other precision machining equipment. By using a collet that contracts around the workpiece, a collet chuck provides stable clamping, good concentricity, and low runout.
A Custom Pull Back Collet Chuck is a specialized type of collet chuck designed to pull the workpiece back against a fixed stop while clamping it. This pull-back action can improve axial positioning accuracy and repeatability, making it particularly useful for CNC Machining applications that require consistent workpiece positioning.
A collet chuck is a mechanical chuck designed to hold a workpiece or cutting tool using a removable collet. The collet typically has several slots that allow it to contract when compressed inside the tapered body of the chuck.
When the collet is tightened, it applies clamping force around the workpiece. Because the workpiece is supported around a large portion of its circumference, a CNC collet chuck can provide stable and accurate workholding for cylindrical parts.
The primary purpose of a collet chuck is to securely hold a workpiece during machining. The collet surrounds the workpiece and applies relatively uniform radial clamping force, helping prevent movement caused by cutting forces.
This makes collet chucks especially suitable for round bars, shafts, tubes, and other cylindrical components.
Precision machining requires stable and repeatable workholding. A properly selected collet chuck can provide excellent concentricity and low radial runout.
This is particularly important when machining small-diameter or precision components where even a small amount of movement can affect dimensional accuracy.
Because a collet applies clamping force around the workpiece rather than concentrating the force at only a few contact points, it can help reduce deformation on suitable workpieces.
This can be beneficial when machining thin-walled or relatively delicate cylindrical components, although the correct collet size and clamping force are still essential.
For high-volume CNC production, every workpiece needs to be positioned consistently. A Pull Back Collet Chuck can provide both radial clamping and axial pull-back positioning.
During clamping, the workpiece is pulled against a stop. This helps establish a repeatable axial reference and can reduce variations between individual workpieces.
A pull back collet chuck is a collet chuck designed with an axial pull-back mechanism. Instead of simply clamping the workpiece radially, the mechanism also draws the workpiece backward against a stop as the collet closes.
This design provides two important functions:
Radial clamping of the workpiece
Axial positioning against a fixed stop
As a result, a pull-back design can be useful for CNC turning and other machining operations where consistent axial positioning is critical.
The basic operating sequence is relatively simple:
The workpiece is inserted into the collet.
The workpiece reaches the predetermined axial stop.
The machine activates the clamping mechanism.
The collet contracts around the workpiece.
The pull-back mechanism draws the workpiece against the stop.
The workpiece is securely positioned for machining.
This combination of radial clamping and axial positioning makes the pull back collet chuck particularly useful for repetitive CNC production.
A Custom Pull Back Collet Chuck is designed or configured according to the requirements of a specific machine, workpiece, production process, or application.
Standard collet chucks may not always provide the required dimensions, clamping range, pull-back stroke, mounting configuration, or workpiece clearance. A custom solution allows these parameters to be optimized for the actual machining process.
A Custom Pull Back Collet Chuck may be customized in areas such as:
Workpiece diameter and clamping range
Collet type and size
Chuck mounting interface
Pull-back mechanism
Axial positioning requirements
Overall chuck dimensions
Workpiece clearance
Machine spindle compatibility
Special workpiece profiles
Production-specific tooling requirements
The exact customization options depend on the chuck design, machine configuration, and application requirements.
A precision CNC collet chuck can provide accurate centering of cylindrical workpieces. Low runout helps improve machining consistency and part quality.
The collet surrounds the workpiece and provides distributed clamping force. This creates stable workholding during turning, facing, drilling, threading, and other machining operations.
Collet chucks are well suited to repetitive production because workpieces can be loaded and clamped efficiently. This can help reduce setup and cycle times in automated or semi-automated CNC Machining.
For mass production, repeatable positioning is critical. A pull-back design can help maintain consistent axial positioning from one workpiece to the next.
Collet systems are commonly used for small and medium-sized cylindrical workpieces. They can provide accurate clamping where a conventional three-jaw chuck may not be the most suitable solution.
| Feature | Collet Chuck | 3-Jaw Chuck |
|---|---|---|
| Clamping method | Collet surrounds the workpiece | Three jaws clamp the workpiece |
| Concentricity | Generally excellent | Good, depending on chuck type and condition |
| Small-diameter parts | Very suitable | Suitable depending on jaw configuration |
| Repeatability | Excellent for repetitive production | Good |
| Axial positioning | Can be integrated with pull-back designs | Usually requires a separate stop or positioning method |
| Production applications | Highly suitable | Suitable for a wide range of applications |
Pull back collet chucks are commonly used in precision and high-volume machining applications where consistent workpiece positioning is important.
In CNC turning, a pull-back collet chuck can securely hold shafts, pins, bushings, tubes, and other rotational components while maintaining repeatable axial positioning.
Industries producing small precision components can benefit from the concentricity and repeatability provided by a precision collet chuck.
Collet workholding can be used for machining automotive components such as shafts, sleeves, pins, and other cylindrical parts.
Precision machining of selected medical and surgical components may require stable and repeatable workholding. A suitable CNC collet chuck can support these manufacturing requirements.
The combination of quick clamping, repeatability, and automated operation makes pull-back collet systems suitable for production environments where many identical parts need to be machined.
The chuck must be compatible with the machine spindle, mounting interface, drawtube, actuator, and available space. Machine specifications should be confirmed before selecting a chuck.
The workpiece diameter and shape determine the appropriate collet and clamping range. Selecting the correct size is essential for secure and accurate workholding.
If consistent workpiece length or axial positioning is important, a Custom Pull Back Collet Chuck may offer advantages over a standard collet chuck.
Precision applications should consider the required runout and concentricity. The chuck, collet, machine spindle, and workpiece should all be considered as part of the complete machining system.
For high-volume CNC production, factors such as clamping speed, automation compatibility, repeatability, durability, and maintenance should be evaluated.
Although standard collet chucks are suitable for many applications, custom workholding can provide a better solution when the workpiece or machine has special requirements.
A Custom Pull Back Collet Chuck can be designed around the actual workpiece geometry, machine interface, clamping requirements, and production process. This can help optimize workholding performance and improve machining consistency.
The main purpose of a collet chuck is to securely hold and accurately position a workpiece or tool during machining. It is especially suitable for cylindrical workpieces that require good concentricity and repeatable clamping.
A pull back collet chuck is a workholding device that combines radial collet clamping with an axial pull-back action. The pull-back mechanism draws the workpiece against a stop to provide repeatable axial positioning.
A Custom Pull Back Collet Chuck is used when standard workholding solutions cannot meet specific machine, workpiece, positioning, or production requirements. It is commonly considered for precision and high-volume CNC machining.
Collet chucks can provide excellent concentricity and low runout for suitable cylindrical workpieces. However, actual accuracy depends on the chuck, collet, machine spindle, workpiece, and operating conditions.
Collet chucks are commonly used on CNC lathes, CNC turning centers, automatic lathes, Swiss-type machines, milling machines, and other precision machining equipment.
Collet chucks are particularly suitable for cylindrical workpieces such as shafts, rods, pins, tubes, sleeves, and other round components. The appropriate collet must be selected according to the workpiece dimensions and shape.
The main purpose of a collet chuck is to provide secure, accurate, and repeatable workholding during machining. Its ability to clamp cylindrical workpieces around their circumference makes it particularly useful for precision CNC applications.
For applications requiring consistent axial positioning, a pull back collet chuck can provide an additional advantage by pulling the workpiece against a fixed stop during clamping. When standard solutions do not meet specific production requirements, a Custom Pull Back Collet Chuck can be developed around the machine, workpiece, and machining process.
