How to Use Shrink Fit Tool Holders?

Shrink Fit Tool Holders are widely used in CNC machining for their high precision, strong clamping force, and excellent stability. Understanding how to properly use shrink fit tool holders is essential to ensure machining accuracy, extend tool life, and maintain safety during operation.

What Are Shrink Fit Tool Holders?

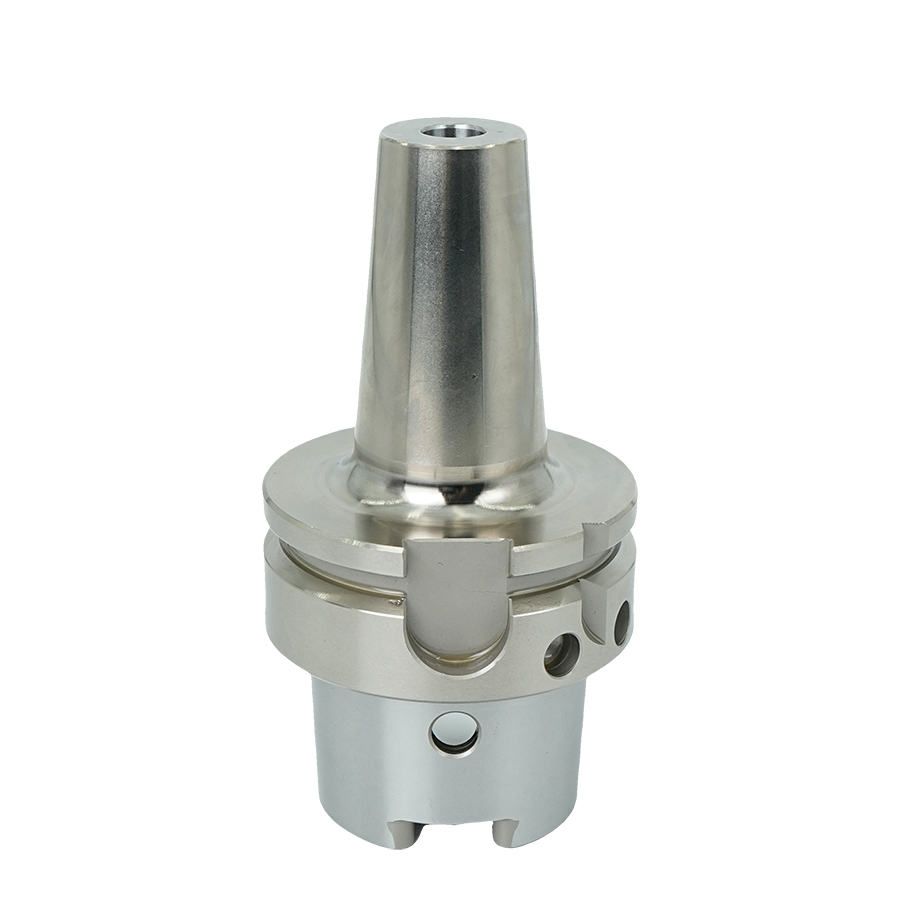

A shrink fit tool holder (also known as a heat shrink tool holder or shrink holder) is a tool clamping device that uses thermal expansion and contraction to hold cutting tools. By heating the holder, the bore expands, allowing tool insertion. After cooling, the holder shrinks and tightly grips the tool.

Unlike traditional systems, shrink fit holders do not require a shrink fit collet, ensuring better balance and higher precision.

Equipment Required

To use shrink fit tool holders, you will need:

• Shrink fit tool holder machine

• Heat shrink tool holder machine

• Heat shrink machine for tool holders

• Cooling device (air cooling or cooling sleeve)

These machines use induction heating to safely and efficiently heat the heat shrink holder.

Step-by-Step Guide: How to Use Shrink Fit Tool Holders

1. Select the Correct Tool Holder

Choose the appropriate shrink tool holder based on your machine interface and application:

• BT Shrink Fit Tool Holders (such as BT30 shrink fit, BT30 shrink fit holders, BT40 shrink fit holders, and BT 50 tool holder)

• HSK tool holder (often considered among the Best HSK Tool Holders for high-speed machining)

Ensure the tool shank diameter exactly matches the holder bore.

2. Clean the Holder and Tool

Before use:

• Clean the inside of the shrink fit holder

• Remove oil, dust, and debris from the cutting tool

Cleanliness is critical for maintaining clamping force and precision.

3. Heat the Tool Holder

Place the heat shrink tool holder into the heat shrink machine for tool holders:

• Heat only the front clamping area

• Heating time is typically 3–8 seconds

A professional shrink fit tool holder machine ensures uniform and controlled heating.

4. Insert the Cutting Tool

Once heated:

• Quickly insert the tool into the expanded bore

• Push it to the correct depth

Timing is important, as the holder will begin to cool and shrink immediately.

5. Cool the Holder

Use a cooling device to accelerate the process:

• Air cooling or cooling sleeves

• The holder contracts and securely clamps the tool

At this stage, the shrink holder achieves maximum gripping force.

6. Install on the Machine

Mount the assembled shrink fit tool holder onto the CNC spindle:

• Suitable for BT40 shrink fit holders, BT30 shrink fit holders, or HSK tool holder systems

• Begin machining operations

How to Remove the Tool

To remove the tool:

1. Reheat the heat shrink holder

2. The bore expands again

3. Remove the cutting tool quickly

4. Allow the holder to cool naturally

Important Tips for Safe Use

Accurate Size Matching

• The tool diameter must match the holder exactly

• Shrink fit holders do not allow size adjustment like collet systems

Avoid Overheating

• Excessive heat can damage the holder

• Always use a professional heat shrink tool holder machine

Maintain Cleanliness

• Dirt or oil will reduce clamping performance

Limit Repeated Heating

• Frequent heating cycles may affect material properties over time

Advantages of Using Shrink Fit Tool Holders

• High precision and low runout

• Strong and uniform clamping force

• Excellent balance for high-speed machining

• Longer service life compared to collet systems

Whether using BT Shrink Fit Tool Holders or a high-performance HSK tool holder, this method ensures reliable and consistent machining results.

Learning how to properly use shrink fit tool holders is essential for achieving optimal CNC machining performance. With the help of a shrink fit tool holder machine or heat shrink machine for tool holders, operators can quickly and safely install tools with high precision.

From BT40 shrink fit holders to advanced HSK tool holder systems, shrink fit technology remains one of the most efficient and reliable tool holding solutions in modern manufacturing.
