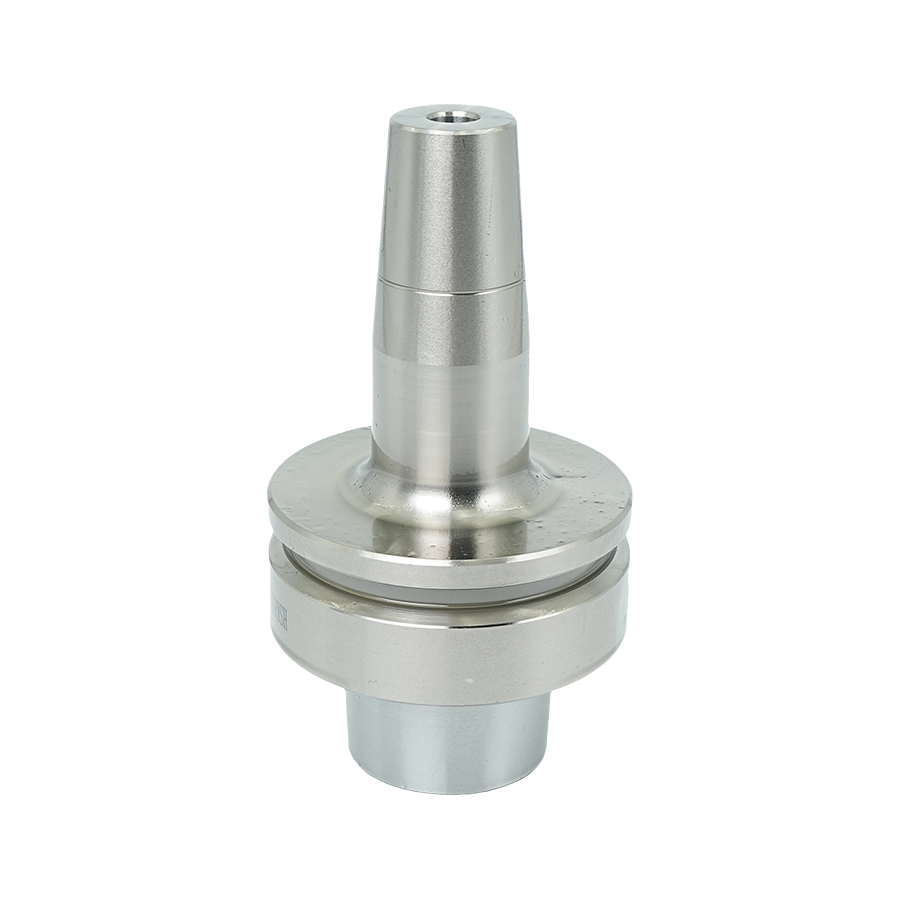

A Shrink Fit Tool Holder is a high-precision CNC tool holding solution that uses thermal expansion and contraction to securely clamp cutting tools. Unlike traditional clamping systems, Shrink Fit Tool Holders rely on heat to expand the holder bore, allowing the tool to be inserted. Once cooled, the holder contracts, creating a strong, uniform grip on the tool shank.
This technology is widely used in modern machining due to its superior accuracy, stability, and performance, making it a preferred choice for high-speed and high-precision applications.
The working principle of a heat shrink tool holder is based on the physical property of metal expansion and contraction:
A shrink fit tool holder machine or heat shrink machine for tool holders is used to heat the front end of the holder.
The bore of the shrink holder expands slightly.
The cutting tool is inserted into the expanded bore.
After cooling, the holder shrinks and tightly grips the tool.
This process eliminates the need for mechanical clamping components such as Collets or screws.
There are various types of shrink fit holders designed to meet different machining standards:
Common models: BT30 shrink fit, BT30 shrink fit holders, BT40 shrink fit holders, and BT 50 tool holder
Widely used in general CNC machining centers
Excellent rigidity and compatibility
Includes high-performance HSK tool holder systems
Known for superior stability at high spindle speeds
Often considered among the Best HSK Tool Holders for precision machining
Designed for specific applications
Compatible with advanced heat shrink holder systems
Used in industries requiring ultra-high accuracy
Shrink fit tool holders offer extremely low runout, typically ≤0.003 mm, making them ideal for precision machining tasks.
The uniform shrink grip ensures excellent holding power, reducing tool slippage during high-speed cutting.
With no moving parts like a shrink fit collet, these holders maintain excellent dynamic balance, suitable for high RPM operations.
Since there are no mechanical clamping components, wear and tear are minimized, extending the lifespan of the shrink tool holder.
To use shrink fit tool holders, specialized heating equipment is required:
Shrink fit tool holder machine
Heat shrink tool holder machine
Heat shrink machine for tool holders
These machines use induction heating to quickly and evenly heat the holder, ensuring safe and efficient tool changes.
Shrink fit holders are widely used in industries such as:
Aerospace machining
Automotive parts manufacturing
Mold and die production
Precision CNC machining
They are especially suitable for:
High-speed machining
High-precision finishing
Long tool overhang applications
Compared with traditional systems like collet chucks:
Shrink fit tool holders provide higher precision and better balance
No need for additional components like a shrink fit collet
Require a heat shrink machine for tool holders, making setup slightly more complex
However, the performance advantages far outweigh the limitations in high-end machining environments.
A Shrink Fit Tool Holder is an advanced tool holding solution that delivers unmatched precision, stability, and clamping force. Whether you are using BT40 shrink fit holders, BT30 shrink fit holders, or a high-performance HSK tool holder, this technology plays a critical role in improving machining quality and efficiency.
With the support of a reliable heat shrink tool holder machine, manufacturers can achieve consistent, high-precision results, making BT shrink fit tool holders and HSK systems essential components in modern CNC machining.
