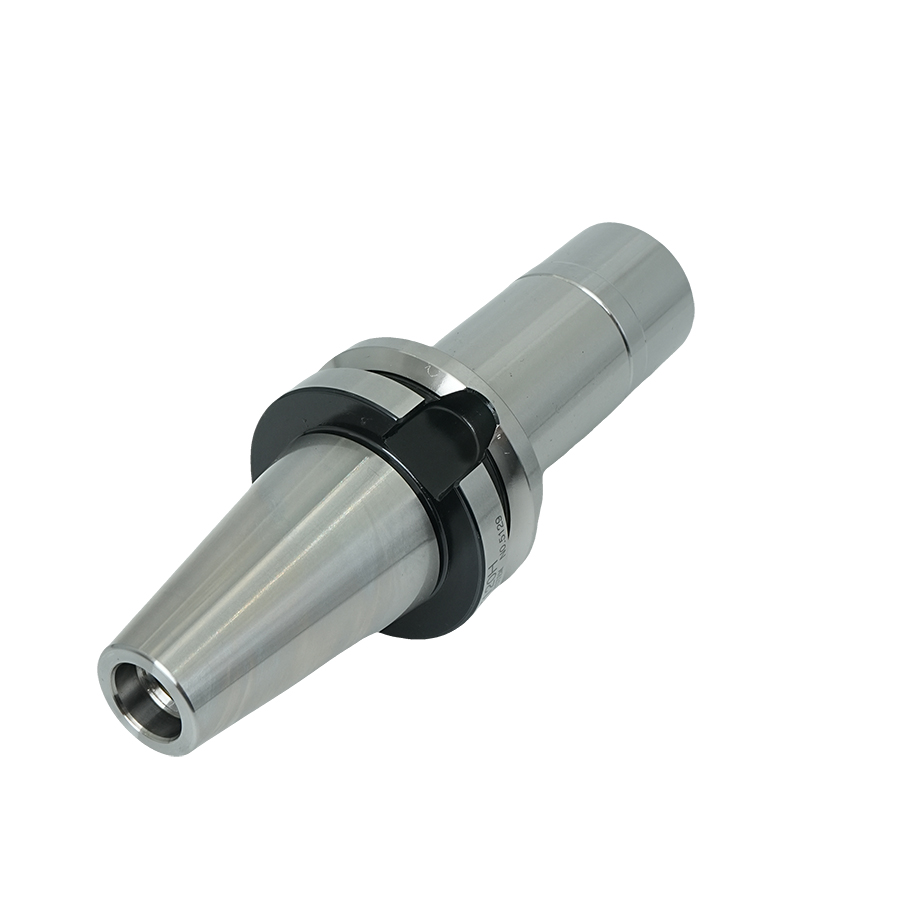

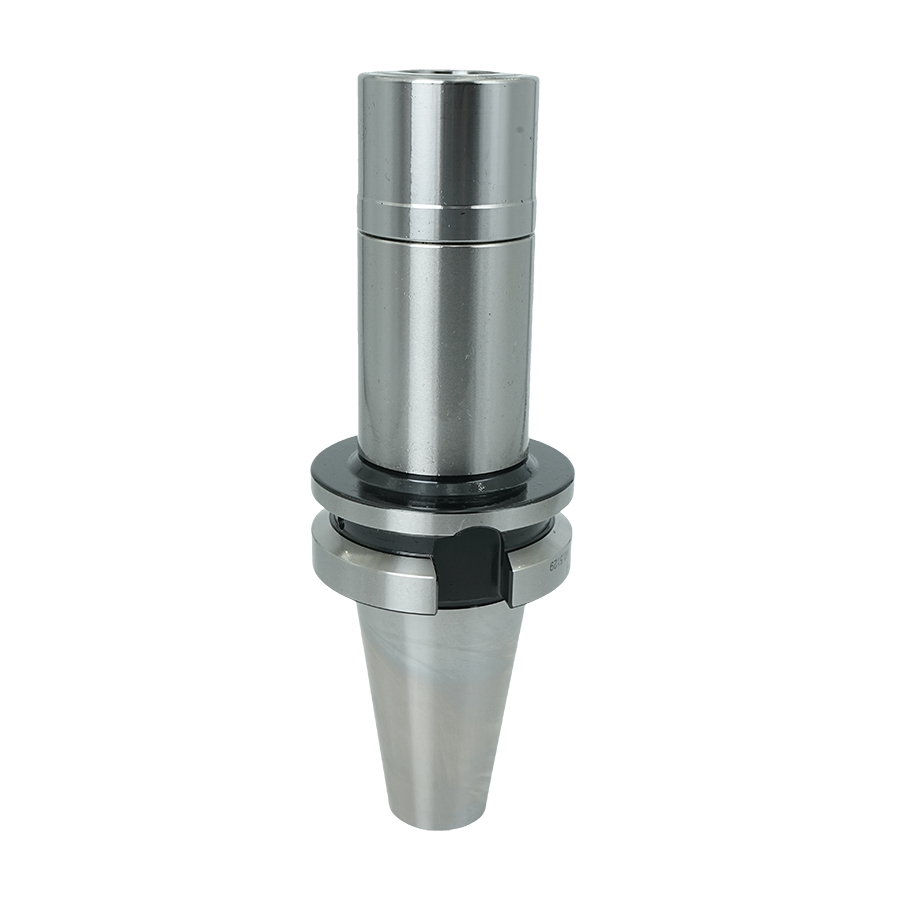

SK Tool Holder

An SK Tool Holder, also known as SK Collet Chuck, SK Chuck Holder, SK Shank Tool Holder, or SK Taper Tool Holder, is a high-precision tool-holding accessory widely used in CNC Machining, mold manufacturing, metal processing, and high-speed milling. Designed based on international DIN standards, the SK taper offers exceptional rigidity and accuracy, making it one of the most reliable and versatile SK milling tool holder systems in modern CNC Machining centers.

What is an SK Tool Holder?

An SK Tool Holder is a standardized CNC tool-holding system featuring a steep taper interface. It is primarily available in SK30 Tool Holder, SK40 Tool Holder, and SK50 Tool Holder sizes. Known as SK Precision Tool Holders, these models are engineered for high-speed, high-accuracy machining applications where stability and precision are critical.

Key variations include:

• SK30 Tool Holder – Small machines, engraving, and high-speed precision work.

• SK40 Tool Holder – Most commonly used in CNC machining centers.

• SK50 Tool Holder – Heavy-duty milling and high clamping force applications.

Core Advantages of SK Tool Holder

1. High Precision (Runout ≤ 0.003 mm)

High precision SK Tool Holders are manufactured using advanced grinding and heat-treatment technology, delivering industry-leading accuracy. Minimal runout ensures:

• Greater dimensional accuracy in milling, drilling, and boring

• Superior tool life

• Smooth surface finishing

• Reduced vibration during high-speed machining

This makes SK CNC milling tool holders for metal one of the most trusted standards for precision milling.

2. Strong Clamping Force

The SK taper provides powerful tool clamping, increasing cutting efficiency and stability at high feed rates. When paired with SK ER Collet Chuck systems, it offers exceptional performance across a wide variety of tool diameters, ensuring secure and consistent machining.

3. Premium Materials & Heat Treatment

All SK Tool Holders are manufactured from high-strength alloy steel (e.g., 20CrMnTi or 40Cr) with:

• HRC 58–60 surface hardness

• Tough core structure for impact resistance

• Anti-friction and anti-wear properties

These material qualities enhance the lifespan of SK milling tool holders and maintain stable performance under high-speed and heavy-duty operations.

4. Balanced for High-Speed Machining

SK Tool Holders are available with G2.5 balance at speeds ranging from 20,000 to 30,000 rpm. Optional high-speed balancing ensures precision even for ultra-fast machining of aluminum, mold manufacturing, and high-speed engraving.

5. Wide Compatibility

SK Tool Holders are compatible with:

• CNC machining centers

• Milling machines

• Drilling machines

• Tapping centers

• Mold processing equipment

Sizes including SK30, SK40, and SK50 make them compatible with a wide range of international CNC systems.

Key Features

• SK30 / SK40 / SK50 taper options

• Runout accuracy ≤ 0.003 mm

• ISO / DIN69871 compliant

• High clamping torque and rigidity

• Long tool life due to strong material hardness

• Optional coolant-thru design

• Compatible with multiple ER collet sets

• Suitable for high-speed and heavy-duty cutting

Common Specifications

Applications (Industry Use Cases)

1. CNC Machining

• General machining centers

• High-speed CNC mills

• 3-axis / 4-axis / 5-axis machining systems

• Automated CNC production lines

SK Tool Holder for CNC Machine ensures stable tool performance even under long machining cycles.

2. Mold Manufacturing

• Plastic injection mold processing

• Die casting mold machining

• Precision cavity milling

• High-speed engraving

The rigidity of SK Precision Tool Holders guarantees ultra-smooth surfaces and micro-tolerance precision.

3. Aerospace & Aviation

• Aluminum alloy milling

• Titanium alloy drilling

• Structural component machining

High-speed balanced SK Tool Holders are ideal for aerospace-grade components.

4. Automotive & EV Components

• Engine components

• Drive shafts

• Gear housing machining

• Brake systems

Consistent precision ensures reliable mass-production performance.

5. Electronics & Medical Device Machining

• Micro-precision parts

• Stainless steel and copper machining

• Small tools requiring extreme runout accuracy

SK Tool Holder vs Other Standards

SK Tool Holders are cost-effective, sufficiently rigid, and widely preferred in Asia and Europe for precision milling.

Core Selling Points (Overseas Buyers)

• High precision with up to 0.003 mm runout

• DIN69871 SK30 / SK40 / SK50 complete models

• Heat-treated premium steel for maximum durability

• High-speed balanced for up to 30,000 rpm

• Compatible with all major CNC spindle brands

• Suitable for heavy-duty and high-speed machining

• Ideal for mold makers, CNC shops, and OEM factories

• Stable supply, OEM/ODM supported

FAQ – High-Ranking Questions

Q1: What size SK Tool Holder should I choose?
A1: SK30 for small machines and high-speed engraving, SK40 for most CNC centers, SK50 for heavy-duty milling.

Q2: Can SK Tool Holders handle high-speed machining?
A2: Yes, they are balanced to G2.5 for up to 30,000 rpm.

Q3: Are SK Tool Holders compatible with ER collets?
A3: Yes, SK ER Collet Chuck systems work with ER16–ER40.

Q4: What is the runout accuracy of SK Precision Tool Holders?
A4: Typical runout is ≤ 0.003 mm, ensuring superior part quality.

Q5: Do you provide OEM/ODM services for SK Tool Holders?
A5: Yes, customization options include logos, balancing levels, surface treatments, and full tool holder sets.

Q6: What materials can SK Tool Holders machine?
A6: Aluminum, steel, stainless steel, titanium, copper, brass, plastics, and composite materials.

Q7: How does SK Tool Holder compare to BT and CAT holders?
A7: SK provides higher clamping strength, lower runout, better balance, and global compatibility.

Q8: Can SK Tool Holders be used for mold manufacturing?
A8: Yes, SK Precision Tool Holders provide the rigidity and stability required for cavity milling and die casting molds.

Q9: Are SK Tool Holders suitable for automotive and EV components?
A9: Absolutely, they maintain precise machining for engines, drive shafts, gear housings, and brake systems.

Q10: How do I maintain my SK Tool Holder?
A10: Clean after use, inspect for wear or damage, and store in a dry, protected environment to extend service life.
