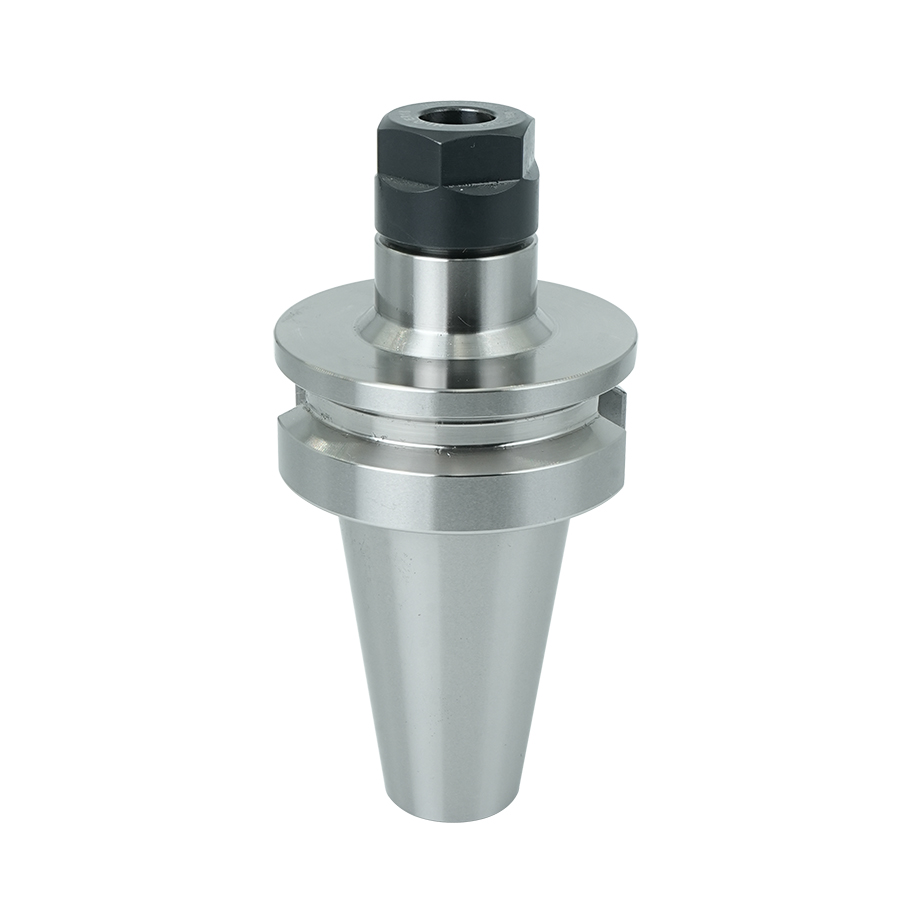

An ER Collet Holder is a CNC tool holding system used to securely clamp cutting tools during milling, drilling, engraving, and other precision machining operations. It works with an ER collet and collet nut to hold tools with different shank diameters while maintaining good concentricity and machining stability.
Because of its flexibility, an ER collet holder is widely used on CNC Machining centers, milling machines, lathes, and other machine tools. Different sizes, including ER16, ER20, ER25, and ER32, are available for different tool diameters and machining requirements.
An ER collet holder is a type of precision tool holder designed to work with ER Collets. The holder is installed in the machine spindle, while the ER collet is inserted into the holder and tightened by an ER collet nut.
A typical setup can be understood as:
CNC spindle → ER collet holder → ER collet → cutting tool
The ER collet provides the actual clamping force around the tool shank. When the collet nut is tightened, the collet is compressed inside the holder, gripping the cutting tool securely.
This design allows one ER tool holder to accommodate a range of tool diameters by changing the appropriate ER collet.
The working principle of an ER collet holder is relatively simple.
First, the appropriate ER collet is placed into the collet nut. The cutting tool is then inserted into the ER collet. After the assembly is positioned inside the holder, the collet nut is tightened.
As the ER collet is pulled into the tapered internal surface of the holder, it contracts evenly around the tool shank. This produces radial clamping force and helps keep the cutting tool centered.
A properly assembled ER collet system can provide:
Secure tool clamping
Good concentricity
Stable machining performance
Flexible tool diameter adjustment
Easy tool changes
Suitable rigidity for many CNC machining applications
The actual performance depends on the holder design, collet quality, tool condition, machine spindle, tightening method, and operating speed.
An ER collet is the replaceable clamping component inside an ER collet holder. It is manufactured with longitudinal slots that allow the collet to elastically contract when compressed.
ER Collets are available in different sizes and gripping ranges. Common specifications include ER11, ER16, ER20, ER25, ER32, and ER40.
For example, an ER32 system is generally suitable for larger tool shanks than an ER16 system. The correct ER collet should be selected according to the actual cutting tool diameter and the holder specification.
The ER collet should also be installed correctly. Improper assembly, contamination, excessive tightening, or using a collet outside its recommended clamping range can affect tool runout and machining accuracy.
Different ER collet holder sizes are designed for different tool diameter ranges and machining requirements.
An ER16 collet holder is a compact option for smaller cutting tools and applications where a relatively small tool holding system is preferred.
The ER16 collet holder is commonly used for:
Small-diameter end mills
Engraving tools
Drilling tools
Small CNC machining operations
Precision machining of small components
Its compact size can be useful when working in areas where tool clearance is limited.
An ER20 collet holder provides a larger clamping range than ER16 and can be used for a broader selection of cutting tools.
An ER20 collet holder is often suitable for general CNC milling, drilling, engraving, and other machining applications that require a balance between compactness and clamping capability.
An ER25 collet holder is designed for medium-sized cutting tools and applications requiring additional tool holding capacity.
It can be used for general-purpose CNC machining, including milling, drilling, and machining of metal, plastics, and other engineering materials.
An ER32 collet holder is one of the commonly used options for general CNC machining applications. Compared with smaller ER systems, ER32 can accommodate larger tool shanks and provide a robust clamping solution.
An ER32 collet holder can be used for:
CNC milling
Drilling
Reaming
Roughing and finishing
General-purpose machining
Precision component manufacturing
The appropriate ER32 collet should be selected based on the diameter of the cutting tool.
These terms are closely related, but they do not always refer to exactly the same component.
An ER collet is the flexible clamping element that grips the cutting tool.
An ER collet holder is the main tool holder that connects the ER collet system to the CNC machine spindle.
An ER chuck is a general term that may be used to describe a chucking system based on an ER collet. In many product catalogs, an ER chuck can therefore refer to an ER collet chuck or a complete ER clamping assembly.
The basic relationship is:
ER tool holder → holds ER collet → ER collet holds cutting tool
This is why terms such as ER collet chuck, ER chuck holder, and collet chuck holder can sometimes appear in CNC tooling catalogs.
A straight shank collet chuck is another type of collet-based tool holding solution. Instead of being connected directly to a machine spindle through a standard integrated taper, it uses a straight shank for mounting in a compatible tool holder, chuck, or machine setup.
A straight shank collet chuck can be useful when a machining application requires a specific mounting structure or when adapting a collet system to existing equipment.
When choosing between a straight shank collet chuck and a conventional ER collet holder, the machine interface, tool diameter, required rigidity, available space, and machining operation should all be considered.
A CNC collet holder is widely used in precision machining because it can accommodate different cutting tool sizes with interchangeable collets.
Typical applications include:
CNC milling
CNC drilling
Engraving
Reaming
Metal component machining
Mold and die manufacturing
Automotive parts machining
Aerospace component machining
Electronics component machining
General precision manufacturing
For production environments where different tools are frequently required, an ER system can reduce the need for many dedicated tool holders.
Choosing the correct ER tool holder requires more than simply selecting a collet size.
The holder must match the machine spindle or tool-changing system. Common CNC interfaces include BT, CAT, HSK, and other mounting standards.
Choose between ER16, ER20, ER25, ER32, or other sizes according to the required tool diameter and machining conditions.
The ER collet must match the cutting tool shank diameter. Using the correct collet size helps maintain stable clamping and minimize runout.
For high-speed machining, dynamic balance, concentricity, holder quality, and assembly accuracy become especially important.
A longer tool setup may provide additional reach but can also reduce rigidity and increase vibration. The shortest practical tool projection is generally preferred for stable machining.
An ER collet holder offers several advantages for CNC machining.
One ER tool holder can work with multiple collet sizes, allowing different tool diameters to be used without changing the complete holder.
A properly manufactured and assembled ER system can provide accurate tool centering, which is important for precision machining.
The collet and cutting tool can be changed relatively quickly, making the system convenient for different machining operations.
ER collet systems can be used for drilling, milling, engraving, reaming, and other machining processes.
From compact ER16 systems to larger ER32 and ER40 systems, manufacturers can select an appropriate configuration according to the application.
When purchasing an ER collet holder, buyers should pay attention to manufacturing accuracy, material quality, taper precision, concentricity, surface finish, and overall dimensional consistency.
A reliable collet holder supplier should be able to provide detailed specifications, compatible ER collets, machine interface options, and quality control information.
For CNC machining applications with specific requirements, working directly with an ER collet holder manufacturer can also make it easier to customize dimensions, interfaces, tool lengths, or other tooling specifications.
No. An ER collet holder is the main tool-holding body, while the ER collet is the flexible component that directly clamps the cutting tool.
An ER chuck is used to securely hold cutting tools through an ER collet system. It is commonly used for CNC milling, drilling, engraving, and other machining operations.
ER16 is a smaller ER system generally used with smaller tool diameters, while ER32 provides a larger clamping range and is suitable for larger tools and heavier machining applications.
Yes. An ER collet holder can generally accommodate different tool diameters by using compatible ER collets with the appropriate clamping range.
“Tool holder ER collet” generally refers to a CNC tool holding assembly in which an ER collet is used inside an ER tool holder to clamp the cutting tool.
An ER collet holder is a versatile CNC tool holding system that combines a tool holder, ER collet, and collet nut to securely clamp cutting tools. With different options such as the ER16 collet holder, ER20 collet holder, ER25 collet holder, and ER32 collet holder, users can select a suitable solution according to tool diameter, machining operation, and machine requirements.
For CNC machining applications that require flexible tool changes, reliable clamping, and good concentricity, an ER collet holder remains a practical and widely used tooling solution.
