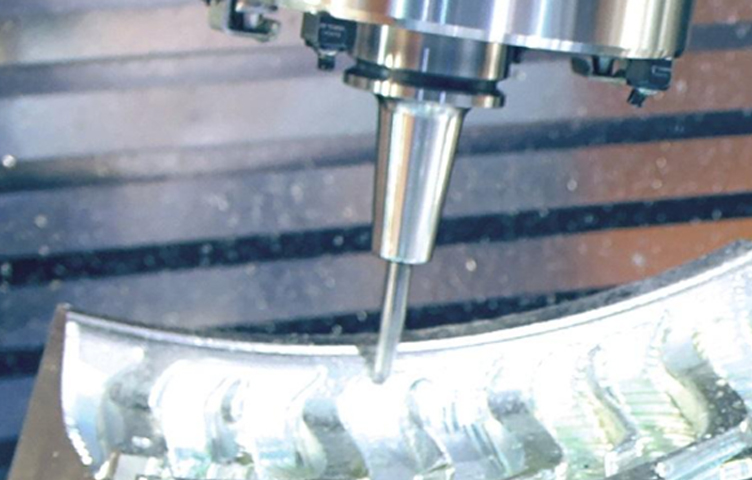

How to Use Shrink Fit Tool Holders

Shrink Fit Tool Holders are widely regarded as one of the most precise and reliable methods for clamping cutting tools in CNC machines. Known for their excellent concentricity and high-speed stability, these holders provide superior performance compared to standard collet or mechanical holders. Common types include ISO30 tool holder, CAT 40 Shrink Fit tool holders, and other high-precision Shrink Fit Holders. Using the best shrink fit tool holders correctly ensures long tool life, reduced vibration, and consistent machining results.

What is a Shrink Fit Tool Holder?

A shrink fit holder works by heating the holder to expand its bore, inserting the cutting tool, and then allowing it to cool. As it cools, the material contracts around the tool, creating a strong, uniform clamping force. This method eliminates the mechanical play often found in conventional holders, ensuring maximum accuracy and minimal runout.

Step-by-Step Guide: How to Use Shrink Fit Tool Holders

1. Prepare the Shrink Fit Machine

Before use, ensure that the shrink fit machine is clean and operating at the correct temperature. Temperature control is critical, as overheating can damage the holder or the tool.

2. Insert the Tool

Once the holder reaches the proper temperature, insert the cutting tool into the holder carefully. Make sure the tool is fully seated to achieve optimal clamping.

3. Cooling and Clamping

Allow the holder to cool naturally or use a controlled cooling system. As the holder contracts, it tightly grips the tool, creating an extremely precise and secure fit.

4. Installation on CNC Machine

After cooling, the shrink fit holder can be mounted directly onto the spindle of the CNC machine. Verify the alignment and runout before starting machining operations.

5. Tool Removal

To remove the tool, reheat the holder using the shrink fit machine to expand the bore and safely extract the tool.

Types of Shrink Fit Tool Holders

• ISO30 Tool Holder – Suitable for small to medium-sized CNC machines.

• CAT 40 Shrink Fit Tool Holders – High-performance holders commonly used in heavy-duty machining.

• Shrink Fit Holders – Standard holders compatible with various Collets and cutting tools.

Advantages of Shrink Fit Tool Holders

1. High Precision – Excellent concentricity and minimal runout for high-speed operations.

2. Strong Clamping Force – Uniform grip reduces slippage and vibration.

3. Durable and Reliable – Resistant to wear and deformation compared to mechanical holders.

4. Versatility – Compatible with multiple tool diameters and CNC machines.

5. Extended Tool Life – Reduces stress on cutting tools for longer operation periods.

Applications

• CNC milling machines and machining centers.

• High-speed precision operations in aerospace and automotive industries.

• Mold and die making where minimal runout is critical.

• Operations requiring frequent tool changes with reliable repeatability.

Tips for Optimal Use

• Always use a shrink fit machine calibrated to the manufacturer’s recommended temperature.

• Avoid overheating to prevent damage to both holder and tool.

• Regularly clean the holder and tool shank to ensure consistent clamping.

• Select the best shrink fit tool holders based on spindle type, tool size, and machining requirements.

Using shrink fit tool holders properly ensures high precision, strong clamping, and long tool life. Whether using ISO30 tool holder, CAT 40 shrink fit tool holders, or standard shrink fit holders, following correct procedures with a shrink fit machine will maximize machining efficiency, reduce vibration, and deliver superior results in demanding CNC operations.
