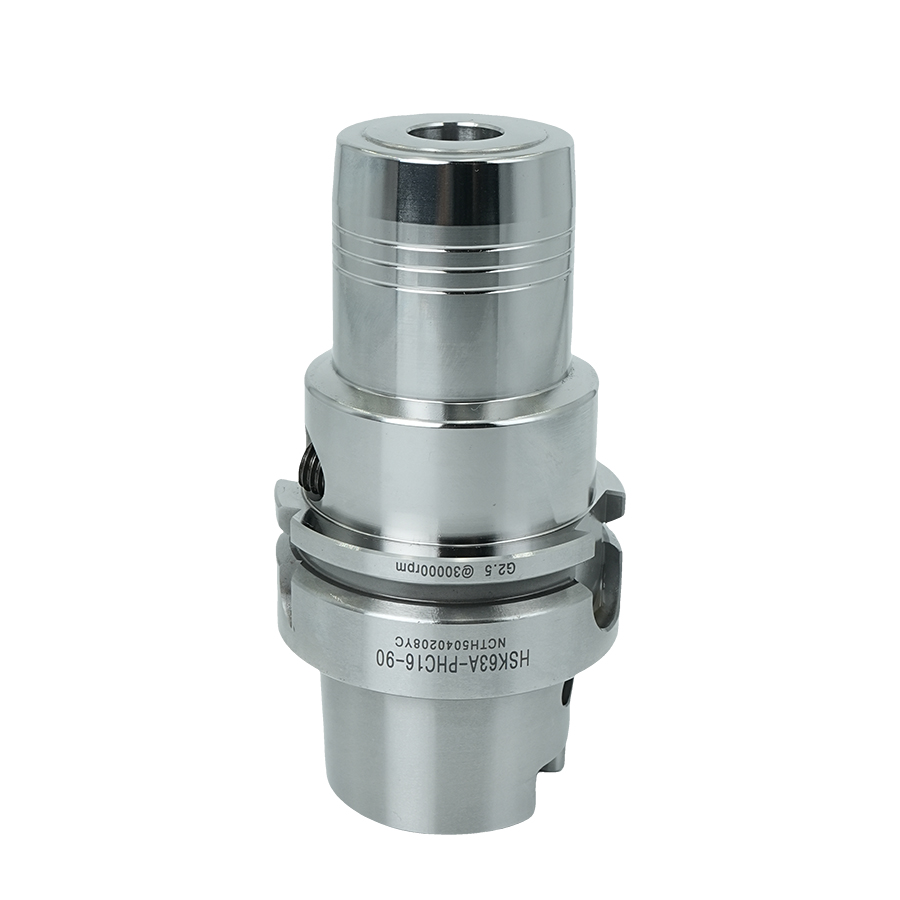

What Is an HSK Tool Holder and How Does It Work?

In modern CNC machining, precision and stability are critical for achieving high-quality results. One of the most advanced solutions in tooling systems is the HSK Tool Holder. Widely used in high-speed machining applications, HSK Tool Holders offer superior accuracy, rigidity, and balance compared to traditional systems.

Whether you are working with an HSK A63 tool holder, HSK ER collet chuck, or sourcing from an HSK Tool Holder manufacturer, understanding how this system works is essential for improving machining performance.

What Is an HSK Tool Holder?

An HSK tool holder (Hohl-Schaft-Kegel, meaning “hollow shank taper” in German) is a type of CNC tool holder designed for high-speed and high-precision machining.

Unlike traditional tool holders such as BT or CAT, the HSK tool holder system features a hollow taper shank and dual-contact design, which ensures:

• High rigidity

• Excellent repeatability

• Superior clamping force

Common types include:

• HSK A63 tool holder

• HSK A100 tool holder

• HSK E32 tool holder

• HSK F63 tool holder

Each type is designed for specific machining applications and spindle systems.

How Does an HSK Tool Holder Work?

The working principle of an HSK tool holder is based on a dual-contact system between the tool holder and the spindle.

1. Hollow Shank Design

The hollow structure allows the HSK Holder to expand slightly during rotation, improving contact with the spindle.

2. Dual Contact System

Unlike traditional holders, the HSK tool holder makes contact at two points:

• Taper contact

• Face contact

This dual contact ensures higher stability and minimizes vibration during machining.

3. Internal Clamping Mechanism

The spindle uses a clamping unit to grip the inside of the HSK tool holder, pulling it tightly into position.

This results in:

• High clamping force

• Improved accuracy (runout ≤0.003mm)

• Better performance in high speed machining

4. Dynamic Balance

High-quality HSK tool holders are dynamically balanced (e.g., G2.5), making them ideal for high-speed applications.

Types of HSK Tool Holders

1. HSK ER Collet Chuck

The HSK ER collet chuck is used for holding various cutting tools with flexibility.

2. HSK End Mill Holder

Designed for end mills, offering strong clamping and stability.

3. HSK Hydraulic Tool Holder

Provides excellent damping and precision for finishing operations.

4. HSK Shrink Fit Tool Holder

Ideal for high-speed machining with maximum rigidity and minimal runout.

5. HSK Drill Chuck & Tapping Chuck

Used for drilling and tapping operations in CNC machining centers.

Advantages of HSK Tool Holders

1. High Precision

HSK tool holders offer extremely low runout, ensuring high machining accuracy.

2. High Speed Capability

Perfect for HSK tool holder for high speed machining, thanks to excellent balance and rigidity.

3. Strong Clamping Force

The internal clamping system provides reliable tool holding.

4. Excellent Stability

The dual-contact design reduces vibration and improves surface finish.

5. Versatility

Compatible with various tools and applications, from milling to drilling.

HSK vs BT Tool Holder

Compared to BT systems, HSK tool holders are more suitable for high-speed and high-precision machining.

Applications of HSK Tool Holders

HSK tool holders are widely used in:

• CNC machining centers

• Automotive manufacturing

• Aerospace components

• Mold and die making

• High-speed milling applications

How to Choose the Right HSK Tool Holder

When selecting an HSK tool holder, consider:

1. Spindle Type

Choose compatible models such as HSK A63 or HSK A100.

2. Application

• Milling → HSK end mill holder

• Precision finishing → HSK hydraulic tool holder

3. Balance Requirement

For high-speed machining, choose G2.5 balanced holders.

4. Supplier Reliability

Work with a trusted:

• HSK tool holder manufacturer

• HSK tool holder supplier

• HSK tool holder factory

For bulk orders, consider OEM HSK tool holder or custom HSK tool holder solutions.

The HSK tool holder is a key component in modern CNC machining, offering unmatched precision, stability, and performance. Its unique hollow shank design and dual-contact system make it the preferred choice for high-speed and high-precision applications.

Whether you are upgrading your machining system or sourcing from an HSK tool holder manufacturer China, choosing the right HSK tool holders can significantly improve productivity and machining quality.
