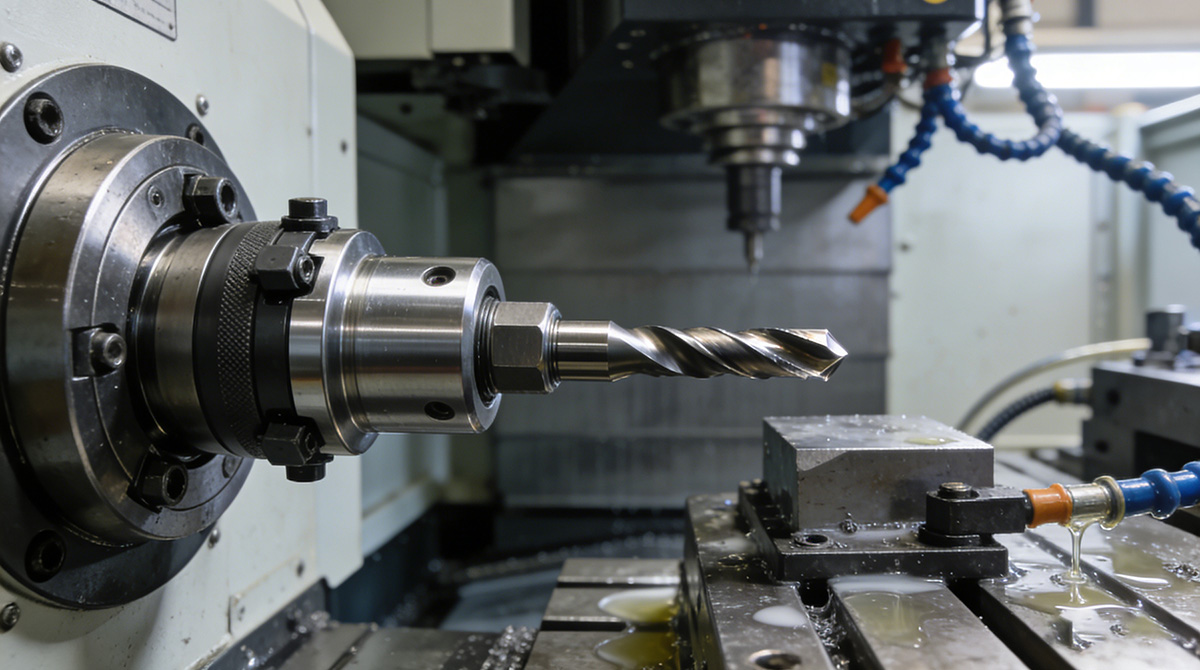

How Do HSK Tool Holders Work

HSK Tool Holders are essential components in modern CNC machining, providing a precise connection between cutting tools and the spindle. They are widely used in milling, drilling, and high-speed machining operations. This article explains how HSK Tool Holders work, their types, advantages, and why choosing the right HSK Tool Holder manufacturer or supplier matters for industrial applications.

What Are HSK Tool Holders?

HSK (Hohlschaft-Kegel) tool holders are designed to connect cutting tools to CNC machine spindles with high precision and stability. Unlike traditional taper holders, HSK Holders use a hollow shank and face contact mechanism, providing superior rigidity, repeatability, and high-speed performance.

Common types include:

• HSK collet holders – ideal for clamping cylindrical shank tools with precision.

• HSK chuck – used for securely holding larger tools in high-speed milling operations.

• HSK spindle tool holder – connects the HSK holder to the machine spindle for accurate tool positioning.

• HSK milling tool holder – specifically designed for milling operations, offering stability and rigidity at high spindle speeds.

How HSK Tool Holders Work

Precision and Rigidity

A high precision HSK tool holder uses both taper contact and flange face contact to create a secure connection with the spindle. This dual-contact system reduces deflection and vibration, ensuring accurate machining and long tool life.

High-Speed Machining

High-speed HSK tool holders are designed to operate at high RPMs without loss of stability. The hollow shank reduces centrifugal forces, maintaining concentricity and preventing tool runout during high-speed cutting.

Shrink-Fit Technology

Shrink-fit HSK tool holders use thermal expansion to clamp tools. The holder is heated, expanded, and the cutting tool is inserted. As the holder cools, it contracts, providing an extremely rigid and precise grip, ideal for heavy-duty or high-precision operations.

Tool Change and Versatility

HSK holders enable quick and accurate tool changes due to their standardized interface. This feature is especially useful for automated machining centers, increasing productivity and reducing downtime.

Advantages of HSK Tool Holders

1. High Precision – Achieve repeatable tool positioning and minimal runout with high precision HSK tool holders.

2. High-Speed Stability – High-speed HSK tool holders maintain concentricity and reduce vibration at high RPMs.

3. Versatility – Suitable for milling, drilling, and turning operations using HSK milling tool holders and HSK collet holders.

4. Shrink-Fit Option – Shrink-fit HSK tool holders provide the highest level of rigidity and are ideal for precision machining.

5. Customization – Available as OEM HSK tool holders or custom HSK tool holders to meet specific machine or tooling requirements.

6. Bulk Supply – Wholesale HSK tool holders are offered by trusted HSK tool holder manufacturers and suppliers, ensuring consistent quality for large-scale production.

Applications of HSK Tool Holders

• CNC Milling Machines: Enhance stability and accuracy for HSK milling tool holders.

• High-Speed Machining Centers: Maintain tool accuracy and reduce vibration with high-speed HSK tool holders.

• Precision Metalworking: Use HSK collet holders for turning and grinding operations.

• Industrial Production: Ideal for automated systems where fast tool changes and repeatability are required.

Choosing the Right HSK Tool Holder

When selecting an HSK tool holder, consider:

• Type of tool and machining operation (milling, drilling, turning)

• Spindle compatibility and size (HSK40, HSK50, HSK63, HSK100)

• Material and construction for rigidity and heat resistance

• Need for shrink-fit or collet system

• Supplier capabilities – whether they provide custom HSK tool holders, OEM solutions, or wholesale HSK tool holders

HSK tool holders are crucial for high-precision, high-speed CNC operations. From HSK collet holders to HSK spindle tool holders, these components ensure optimal tool stability, repeatability, and machining accuracy. Choosing a reliable HSK tool holder manufacturer or supplier guarantees access to custom HSK tool holders, shrink-fit options, and wholesale HSK tool holders suitable for diverse industrial applications.

With the right HSK milling tool holder or high-speed HSK tool holder, manufacturers can achieve better efficiency, reduced tool wear, and higher-quality finished products.
