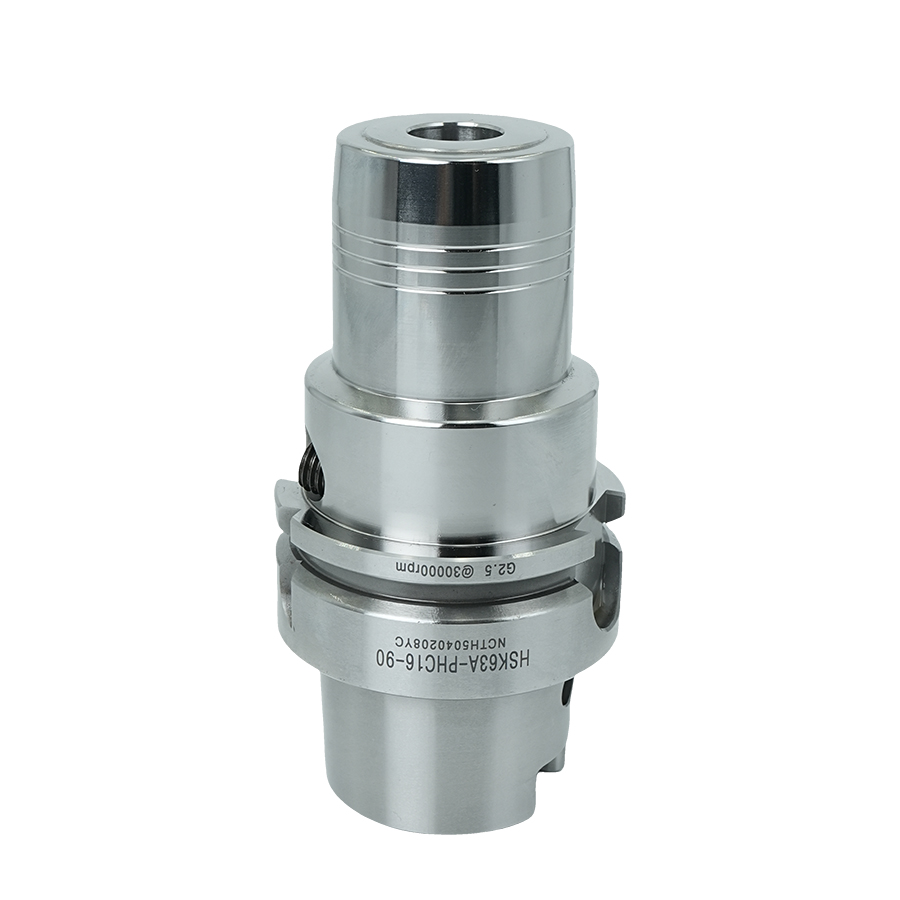

What is HSK Tool Holder

A HSK Tool Holder is a high-precision CNC tool-holding system widely used in modern manufacturing industries, including aerospace, automotive, mold making, and general metalworking. Also known as HSK Collet Chuck, HSK Milling Tool Holder, or HSK CNC Tool Holder, the HSK system is designed for both high-speed and high-accuracy machining applications.

HSK Tool Holders have become the preferred choice for many machining centers due to their dual-contact design, high rigidity, and superior clamping performance. They are widely recognized as HSK Precision Tool Holders and HSK High-Speed Tool Holders, making them indispensable in industries requiring exact tolerances and consistent performance.

What is HSK Tool Holder?

So, what is HSK Tool Holder? The HSK (Hohl-Schaft-Kegel) system, originating from Germany, features a hollow shank design that allows the tool holder to make simultaneous contact with the spindle both at the taper and the flange. This dual contact ensures maximum stability and accuracy, even at very high spindle speeds.

The HSK system includes various types, such as:

• HSK ER Collet Chuck and HSK ER32 Collet Chuck for versatile collet-based tool holding

• HSK High-Speed Milling Tool Holder for rapid machining of aluminum, titanium, and steel

• HSK Precision Milling Tool Holder for mold making, die processing, and aerospace components

How Does HSK Tool Holder Work?

Understanding how does HSK tool holder work is essential for machinists and engineers. The HSK tool holder operates using a dual-contact principle:

1. Taper Contact: The hollow taper fits tightly into the spindle taper, providing precise axial alignment.

2. Face Contact: The flange of the tool holder contacts the spindle face, creating a dual-contact interface that increases rigidity and minimizes tool deflection.

This dual-contact mechanism reduces runout and vibration, ensuring excellent cutting performance at high-speed machining conditions. Compared to traditional SK or BT Tool Holders, HSK holders provide superior stability during rapid acceleration and deceleration, which is particularly important in HSK High-Speed Milling Tool Holder applications.

Core Advantages of HSK Tool Holder

1. High Precision and Accuracy

HSK Precision Tool Holders offer minimal runout, often ≤0.003mm, ensuring high machining accuracy. They are ideal for:

• Mold making and die manufacturing (HSK Tool Holder for Mold Making, HSK Tool Holder for Mold Manufacturing)

• Aerospace components machining (Best HSK Tool Holder for Aerospace Machining)

• Micro-precision CNC operations

The dual-contact design provides consistent tool alignment, ensuring repeatable machining results and superior surface finish.

2. High-Speed Capability

HSK High-Speed Tool Holders are designed for extremely fast spindle rotations, making them ideal for aluminum milling, aerospace components, and high-speed mold machining. They maintain rigidity and clamping force even at high-speed CNC operations, outperforming traditional SK or BT tool holders in terms of stability and vibration reduction.

3. Strong Clamping Force

HSK Collet Chuck and HSK ER Collet Chuck systems offer a wide clamping range and secure tool holding. This results in:

• Reduced tool slipping

• Increased cutting efficiency

• Higher machining stability during heavy cuts

This makes HSK CNC Tool Holder and HSK Milling Tool Holder perfect for both roughing and finishing operations.

4. Material and Durability

HSK tool holders are typically made of high-strength alloy steel, treated for:

• HRC 58–60 surface hardness

• High impact resistance

• Anti-wear and corrosion resistance

This ensures HSK Precision Milling Tool Holder and HSK High-Speed Milling Tool Holder have long service lives even under demanding production conditions.

5. Wide Compatibility

HSK tool holders are compatible with modern CNC machining centers and high-speed spindles. Popular sizes include HSK-A40, HSK-A50, HSK-A63, and HSK-A100. This wide compatibility makes them versatile for applications in:

• CNC Machining Tool Holder systems

• HSK Tool Holder for Mold Making

• HSK Tool Holder for Aerospace Machining

• High-speed milling and precision grinding

Applications of HSK Tool Holder

1. CNC Machining

HSK holders are widely used in:

• 3-axis, 4-axis, and 5-axis CNC machines

• High-speed machining centers

• Automated production lines

They ensure consistent tool alignment and minimize spindle vibration, critical for HSK CNC Tool Holder performance.

2. Mold Manufacturing

HSK tool holders are ideal for mold making due to their HSK Precision Milling Tool Holder capabilities:

• High accuracy for cavity and core machining

• Smooth surface finishes for injection molds

• Long-term stability during repeated machining cycles

3. Aerospace Industry

The aerospace industry demands extreme precision and reliability. Best HSK Tool Holder for Aerospace Machining provides:

• Minimal tool deflection during high-speed milling

• Stable clamping for titanium and aluminum alloys

• Precision repeatability for structural components

4. Automotive Components

HSK holders are used for engine parts, gear housings, brake system components, and EV drivetrains. HSK High-Speed Tool Holders ensure consistent performance in high-volume production environments.

5. Electronics and Medical Equipment

HSK tool holders are perfect for machining small, precision parts:

• Stainless steel, copper, and brass components

• Micro-milling for medical devices and electronic housings

• High-accuracy ER collet clamping (HSK ER32 Collet Chuck)

Key Features Summary

• Dual-contact design for high rigidity

• Minimal runout ≤0.003mm

• Compatible with ER Collets (ER16–ER40)

• High-speed balanced up to 30,000 rpm

• Heat-treated alloy steel for durability

• Wide size options: HSK-A40, HSK-A50, HSK-A63, HSK-A100

• Suitable for CNC, mold making, aerospace, and automotive industries

HSK Tool Holder systems, including HSK Collet Chuck, HSK ER Collet Chuck, HSK Milling Tool Holder, and HSK High-Speed Milling Tool Holder, represent the pinnacle of precision, speed, and stability in modern CNC machining. Whether you are producing molds, aerospace components, automotive parts, or micro-precision devices, HSK Precision Tool Holders ensure repeatable accuracy, long tool life, and reliable high-speed performance.
