How to Use Shrink to Fit Tool Holders

Shrink to fit tool holders are widely used in high-precision CNC machining and milling operations. Known for their excellent rigidity, minimal runout, and superior clamping performance, these holders provide stable and repeatable results, making them essential for modern machining applications. Understanding how to use shrink to fit tool holders is crucial for maximizing tool life and achieving accurate machining.

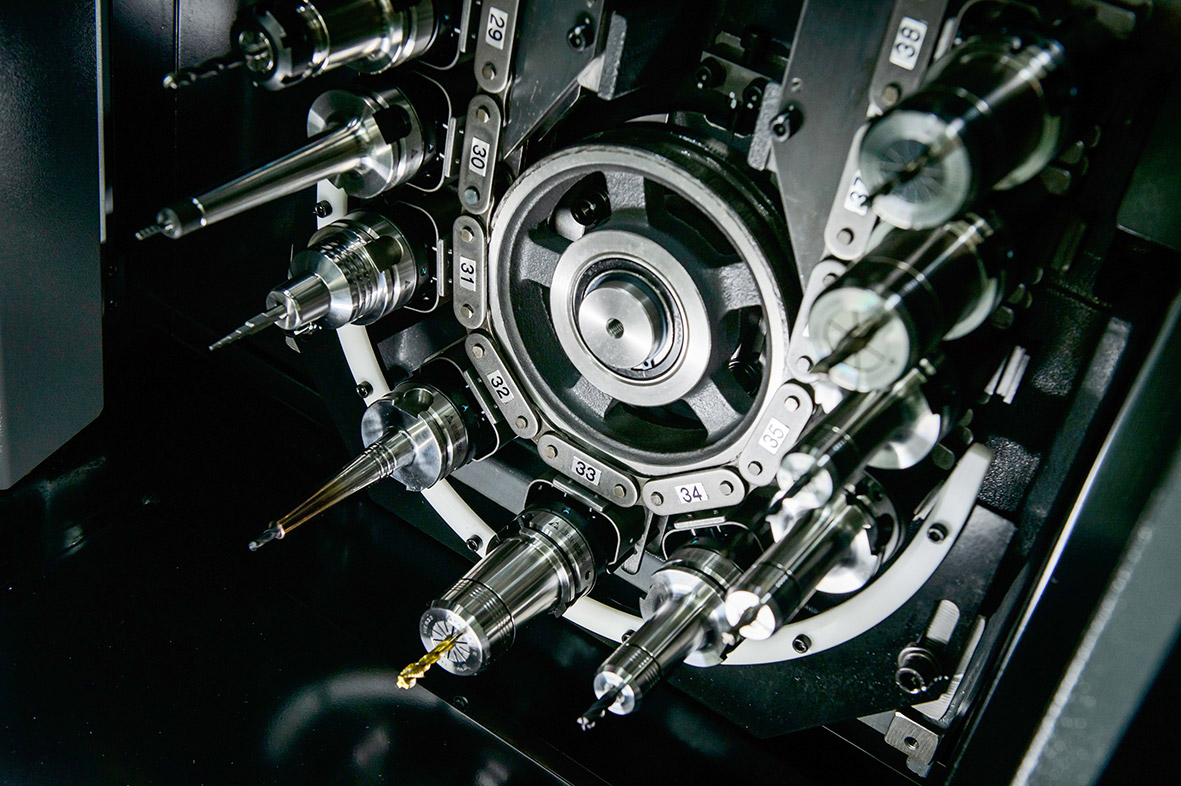

What Are Shrink to Fit Tool Holders?

Shrink Fit Tool Holders, also called thermal expansion tool holders, are high-precision holders that use heat and contraction to securely clamp cutting tools. The process involves heating the holder, inserting the tool, and then allowing the holder to cool. As it contracts, the holder grips the tool tightly, providing uniform clamping and excellent rigidity.

Common types include:

• Shrink fit end mill holders

• Shrink fit collet holders

• Shrink fit ER Collet Holders

These holders are popular in industries that demand precision, such as aerospace, mold manufacturing, and automotive engineering.

How to Use Shrink to Fit Tool Holders

Step 1: Preheat the Holder

Place the shrink to fit tool holder in a heating device (usually an induction heater) and heat it to the recommended temperature, typically between 200°C and 250°C depending on the tool diameter and material.

Step 2: Insert the Cutting Tool

Once the holder reaches the correct temperature, carefully insert the cutting tool (end mill, drill, or milling cutter) into the holder. The thermal expansion ensures a smooth insertion.

Step 3: Allow the Holder to Cool

As the tool holder cools, it contracts and securely clamps the tool. This contraction ensures excellent grip and minimal runout, ideal for high-speed and high-precision machining.

Step 4: Verify Alignment and Runout

After cooling, check the tool alignment and runout using a dial indicator or runout measurement device. Proper installation ensures maximum machining accuracy.

Core Advantages of Shrink Fit Tool Holders

1. High Precision & Minimal Runout – Perfect for finishing and high-speed milling.

2. Strong Clamping Force – Eliminates tool slippage during heavy cuts.

3. Improved Surface Finish – Reduced vibration results in better part quality.

4. Durability – Uniform stress distribution increases tool and holder lifespan.

5. Versatility – Compatible with ER Collets, end mills, drills, and milling cutters.

Shrink to fit tool holders outperform conventional collet holders in rigidity and accuracy, making them the preferred choice for precision machining.

Applications

• CNC Milling – High-speed finishing and roughing.

• Aerospace – Machining precision components and turbine parts.

• Automotive – Engine blocks, transmission parts, and molds.

• Mold & Die Making – Complex and high-precision molds.

• Electronics & Precision Engineering – PCB drilling and micro-machining.

Tips for Using Shrink to Fit Tool Holders

• Always use a calibrated induction heater for consistent results.

• Avoid overheating, as it can damage the holder or tool.

• Clean the tool shank and holder bore before installation to ensure a tight fit.

• Regularly inspect holders for wear or deformation.

• Use shrink fit tool holders in combination with proper CNC settings for optimal performance.

Common FAQs

Q1: What is a shrink to fit tool holder?
A: A shrink to fit tool holder uses thermal expansion to clamp tools securely, providing excellent rigidity, minimal runout, and high machining precision.

Q2: How do shrink fit tool holders work?
A: The holder is heated, the tool is inserted, and as it cools, the holder contracts around the tool for a tight, secure fit.

Q3: Can shrink fit tool holders be used with ER Collets?
A: Yes, shrink fit ER collet holders are commonly used for versatile tooling applications.

Q4: Why choose shrink fit over standard collet holders?
A: They offer higher rigidity, stronger clamping, reduced vibration, and improved machining accuracy, especially for high-speed milling.

Shrink to fit tool holders are a must-have for precision CNC machining, offering unmatched rigidity, clamping strength, and repeatable accuracy. By understanding how to use shrink to fit tool holders, operators can improve tool performance, extend holder lifespan, and achieve superior surface finishes on all types of machined components.
